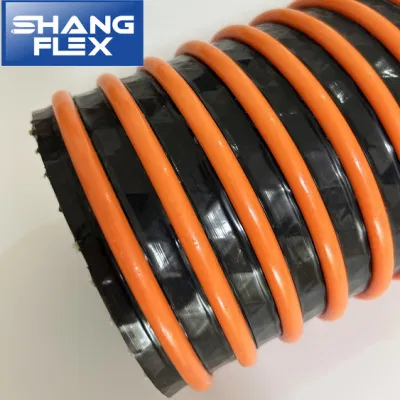

Orange PVC Vacuum Suction Hose Mangueras

Discover the durable Orange PVC Vacuum Suction Hose Mangueras at our factory. High-quality and versatile for various suction applications. Order now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Granuel Room
  • Certifications
Overview

Basic Info.

Model NO.
PVC Suction Hose
Usage
Drainpipe, Water Supply Pipe, Agricultural Irrigation Pipe
Length
6m/30m/50m
MOQ
1000m
Delivery Time
15-30days
Working Pressure
4bar-9bar
Specification
1" to 14"
Trademark
Shangflex
Origin
China
HS Code
39173900
Production Capacity
50000 Tons / Year

Product Description

Product Description

 PVC Suction Hose

Detailed Photos
Orange PVC Vacuum Suction Hose Mangueras
Orange PVC Vacuum Suction Hose Mangueras

PVC Suction Hose

Orange PVC Vacuum Suction Hose Mangueras

Product Parameters

Feature:

  1. smooth pvc inner tube and smooth cover , constructed with rigid  pvc helix inside
  2. Minus pressure resistant , high working pressure
  3. excellent flexibility , extrem bending radium
  4. resistant to crushing , abrasion and most chemicals
  5. high and low  temperature resistant , working pressure  : -5ºC to 70ºC

Applications:
this hose is designed to delivery and suction water ,slurry with pump  in irrigation , mining , construction , drain cleaning truck , water truck.


 Medium Duty - Specifications

Inner Diameter Outer Diameter Length Working Pressure  Burst Pressure  Weight
Inch mm mm Mtr/Roll bar bar kgs/Mtr
3/4" 19 23 50 8 24 0.23
1" 25 29 50 8 24 0.29
1-1/4" 32 36 50 7 21 0.35
1-1/2" 38 42 50 6 18 0.45
2" 50 54 50 5 15 0.55
2-1/2" 63 69 50 5 15 0.88
3" 75 81 50 4 12 1.16
4" 100 108 50 4 12 1.95
5" 125 135 30 4 12 3.00
6" 150 163 30 4 12 3.60
8" 200 214 10 4 12 6.30
10" 254 270 10 4 12 10.00
12" 305 321 10 4 12 14.00
14" 355 375 10 5 15 19.00

Heavy Duty Specifications
Inner Diameter Outer Diameter Length Working Pressure Burst Pressure Weight
Inch mm mm Mtr/Roll bar bar kgs/Mtr
3/4" 19 25 50 9 27 0.28
1" 25 31 50 9 27 0.35
1-1/4" 32 40 50 7 21 0.45
1-1/2" 38 48 50 7 21 0.80
2" 50 60 50 7 21 1.10
2-1/2" 63 73 50 6 18 1.30
3" 75 87 50 6 18 1.85
4" 100 116 50 6 18 3.70
5" 125 141 30 5 15 4.70
6" 150 170 30 5 15 7.20
8" 200 216 10 4 12 7.00
10" 254 274 10 4 12 12.00
12" 305 329 10 4 12 18.00
14" 355 379 10 4 12 20.00

Fiber Reinforced PV Sucton Hose - Specifications
Inner Diameter Outer Diameter Length Working Pressure Burst Pressure Weight
Inch  mm mm Mtr/Roll bar bar Kgs/Mtr
2" 51 66.00 30 5 15 1.10
2-1/2" 64 71.00 30 5 15 1.80
3" 76.20 92.00 30 4 12 2.20
4" 102.50 121.00 30 4 12 3.20
5" 127.50 152.00 20 3 9 4.50
6" 154.50 180.50 20 3 9 5.80
8" 203.50 232.00 12 3 9 8.40


Production Details:

Orange PVC Vacuum Suction Hose Mangueras

Orange PVC Vacuum Suction Hose Mangueras
Orange PVC Vacuum Suction Hose Mangueras



Packaging & Shipping

Orange PVC Vacuum Suction Hose Mangueras



Company Profile

QINGDAO SHANGFLEX TECH CO.,LTD is located in Shandong , China . We supply OEM & ODM flexible hoses,   covering PVC HOSE , RUBBER HOSE , DUCTING HOSE, PU TUBE , PNEUMATIC HOSE and HOSE ASSEMBLIES , COUPLINGS , FITTINGS, CLAMPS .

Our factory was established in 2010.  There are 3 professional workrooms , 1 material granule production workroom , 1 assembly workroom, 3 standard warehouses , including 100 production lines ,150 skilled technicians ,30 senior  technical  personnel  and 5 engineers. Annual output amounts to 50,000 tons and production capacity per month can meet 500 tons.

Our factory has got ISO9001:2008,ISO14001:2008.  All products can be made as the requirement of American Standard , European Standard and  Australian standards. FDA , REACH , ROHS , BS3746, AS2070 .

We have professional sales and servie teams. We have exported to more than 50 overseas countries and over 100 steady customers  , covering America , Canada , Australia , United Kingdom , Brazil , Agentina , Indonesia , Malaysia , Turkey , UAE,South Africa ,etc.

We are reliable source of " Made in China " .  We are professional manufacturer and exporter . Your every inquiry will be followed fast by professional staff.
